DB Schema

A proposed database design based on Mareano Chemical Data

The page shows the database schema diagram along with table definitions based on the Mareano dataset.

DB Schema Diagram

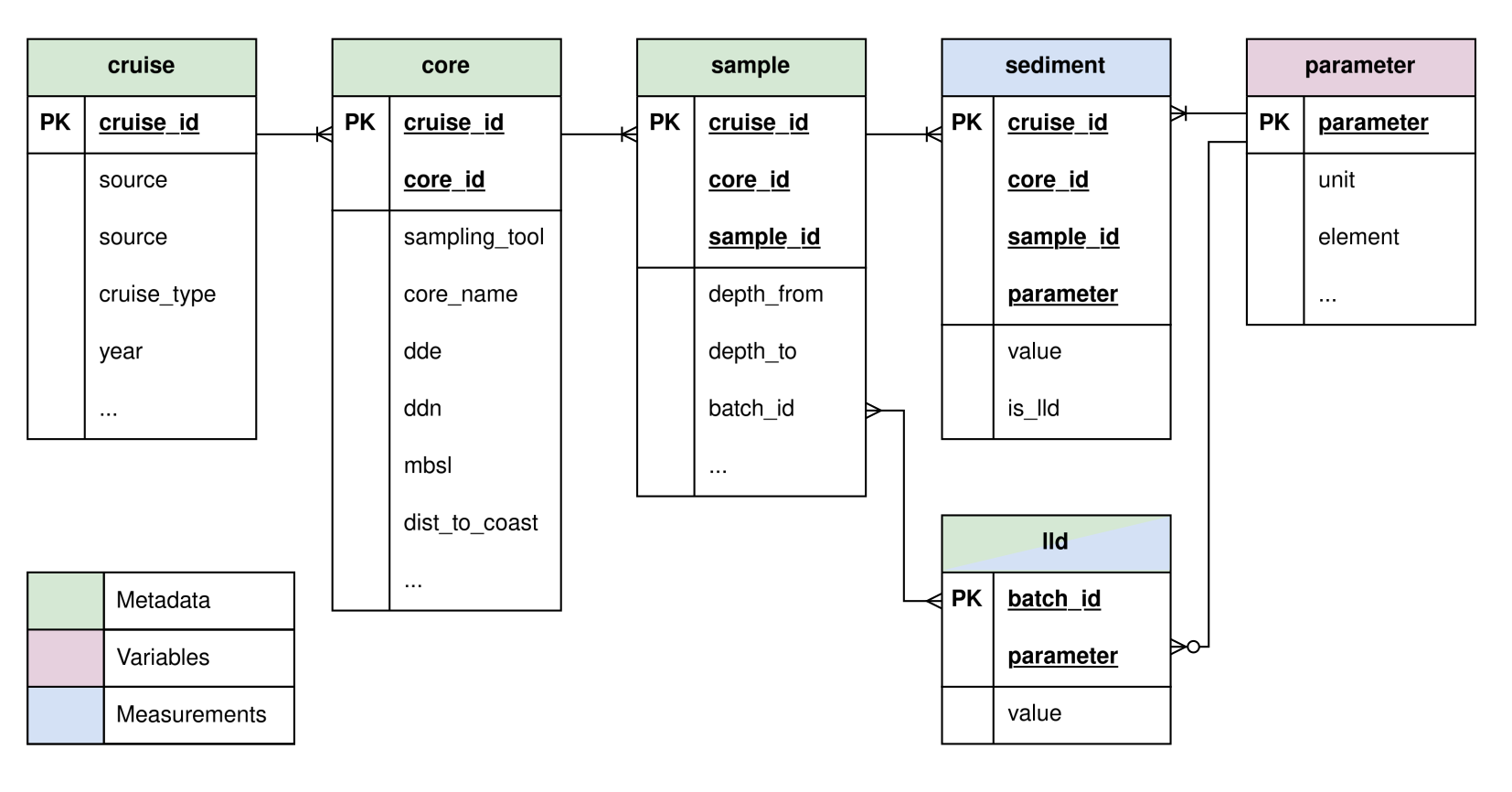

The proposed database design shown in the ER (Entity Relationship) diagram below contains six tables including three meta (entity) tables, one variable (look-up or reference) table, one fact (measurement) table, and one mixed meta and measurement table.

The columns with PK in the diagram indicate primary keys of the table, which guarantees unique identifications. All tables are connected by one-to-many relationships, except for the LLD table (lld). This table is optional for the parameter table but forms a many-to-many relationship with the sample table.

Warning

A direct SQL join must not be performed between the lld and sample tables due to their many-to-many relationship.

Cruise Table

The cruise table includes Mareano cruise information and is a parent of the core table.

Cruise ID

The ID values in the cruise_id column are formulated as follows:

cruise_id: MA-{year}-{cruise_no}

Table Columns

Name Data Type PK NA Allowed Description
cruise_id TEXT ✓ FALSE Primary Key. Unique cruise identifier (e.g., MA-2003-209).
source TEXT FALSE Data source (Mareano).
cruise_type TEXT FALSE Cruise type (Mareano Cruise/Marine Basecamp Cruise).
year INTEGER FALSE Year of the cruise.
cruise_no INTEGER TRUE Cruise number.
start TEXT TRUE Start date of the cruise
end TEXT TRUE End date of the cruise
start_year INTEGER TRUE Start year of the cruise
start_month INTEGER TRUE Start month of the cruise
start_day INTEGER TRUE Start day of the cruise
end_year INTEGER TRUE End year of the cruise
end_month INTEGER TRUE End month of the cruise
end_day INTEGER TRUE End day of the cruise
area INTEGER TRUE Survey area.
cruise_no2 INTEGER TRUE Alternative cruise number.

Core Table

The core table includes sediment core information and is a parent of the sample table.

Core ID

The ID values in the core_id column are formulated as follows:

core_id: {station_no}-{sampling_tool}-{core_name}

The {sampling_tool} part is three characters, padded with zeros, while the {core_name} part is two characters (or “00” if not available).

Table Columns

Name Data Type PK NA Allowed Description
cruise_id TEXT ✓ FALSE Primary Key. Foreign Key to Cruise table.
core_id TEXT ✓ FALSE Primary Key. Unique core identifier (e.g., R0625-BC-000-c1).
station_no TEXT TRUE Station number.
sampling_tool TEXT TRUE Sampling tool code (BC, MC, GR).
tool_id TEXT TRUE Specific tool identifier.
core_name TEXT TRUE Short core name.
dde REAL FALSE Longitude (Decimal Degrees East).
ddn REAL FALSE Latitude (Decimal Degrees North).
mbsl REAL TRUE Water depth (Meters Below Sea Level).
dist_to_coast INTEGER TRUE Distance to the nearest Norwegian coastline (km).

Sample Table

The sample table includes specific sediment sample intervals and is a child of the core table.

Sample ID

The ID values in the sample_id column are formulated as follows:

sample_id: {core_name}-{depth_from}-{depth_to}

All parts are two characters, padded with zeros.

Table Columns

Name Data Type PK NA Allowed Description
cruise_id TEXT ✓ FALSE Primary Key. Foreign Key to Cruise table.
core_id TEXT ✓ FALSE Primary Key. Foreign Key to Core table.
sample_id TEXT ✓ FALSE Primary Key. Unique sample identifier (e.g., c1_00-02).
depth_from INTEGER FALSE Top depth of the sample interval (cm).
depth_to INTEGER FALSE Bottom depth of the sample interval (cm).
batch_id TEXT TRUE Laboratory batch identifier.
sample_id2 TEXT TRUE Alternative sample identifier.

Parameter Table

The parameter table is a look-up table that contains parameter information for the sediment table.

Table Columns

Name Data Type PK NA Allowed Description
parameter TEXT ✓ FALSE Primary Key. Name of the measured parameter (e.g., Se, Cd_a).
unit TEXT TRUE Unit of measurement (e.g., mg/kg, %).
element TEXT TRUE Chemical element (e.g., Selenium, Cadmium).
method1 TEXT TRUE Primary analytical method.
method2 TEXT TRUE Secondary analytical method.
institute TEXT TRUE Institute responsible for the analysis.

Sediment Table

The sediment table contains measurements for all parameters.

Table Columns

Name Data Type PK NA Allowed Description
cruise_id TEXT ✓ FALSE Primary Key. Foreign Key to Cruise table.
core_id TEXT ✓ FALSE Primary Key. Foreign Key to Core table.
sample_id TEXT ✓ FALSE Primary Key. Foreign Key to Sample table.
parameter TEXT ✓ FALSE Primary Key. Foreign Key to Parameter table.
value REAL FALSE Measured value.
is_lld INTEGER FALSE Flag: 1 if value is Lower Level Detection (LLD), 0 otherwise.
Note

The is_lld column indicates if the value is LLD (Lower Level of Detection). For example, if the original value is “<5”, the value is set to “5”, but is_lld is set to 1 (TRUE) instead of the default 0 (FALSE).

LLD Table

The lld table stores the Lower Level of Detection (LLD) values for measured elements, defined per sample batch.

Table Columns

Name Data Type PK NA Allowed Description
batch_id TEXT ✓ FALSE Primary Key. Batch ID shared with Sample table.
parameter TEXT ✓ FALSE Primary Key. Foreign Key to Parameter table.
value REAL FALSE LLD value.
